Superheterodyne Auto-Radio Receiver: ZENITH

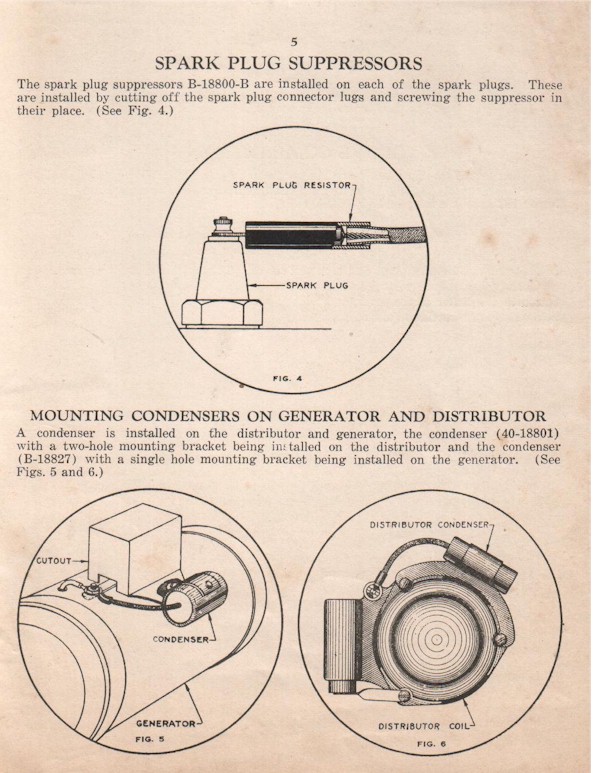

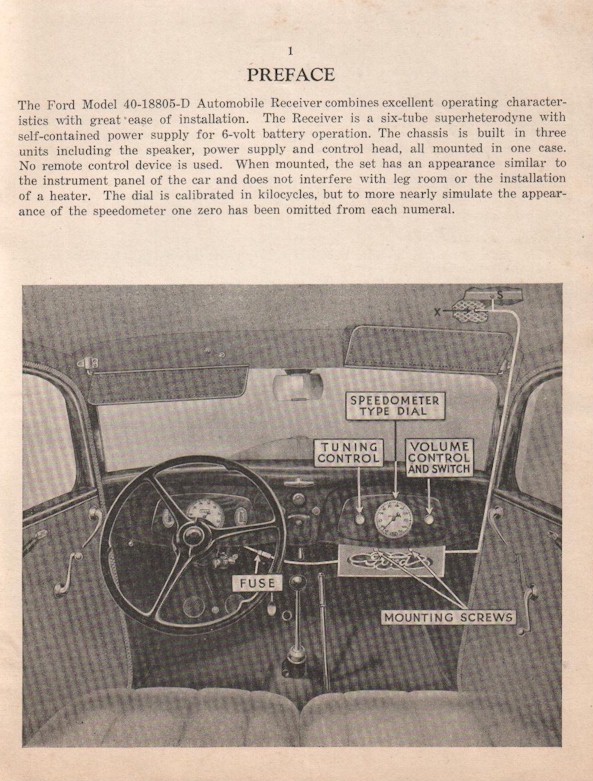

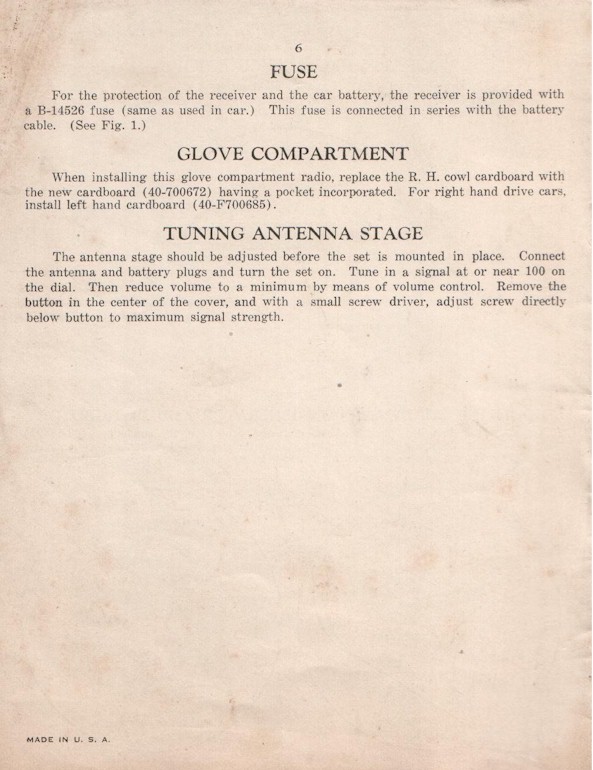

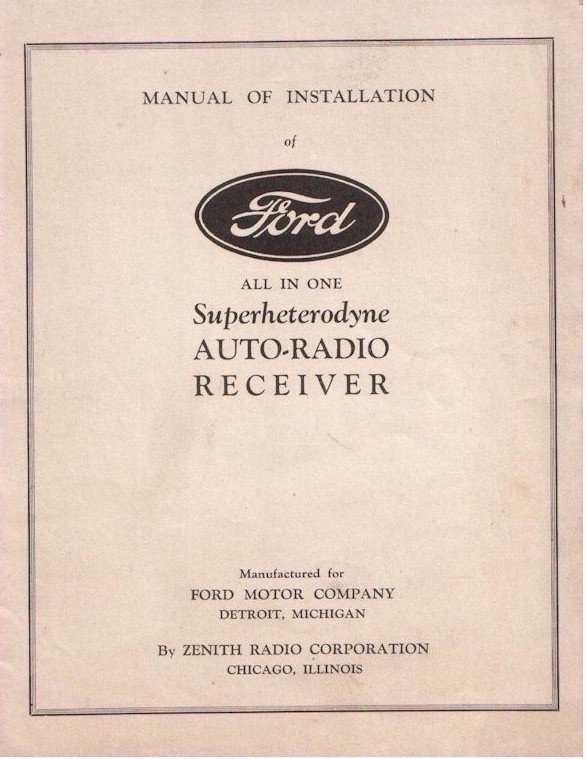

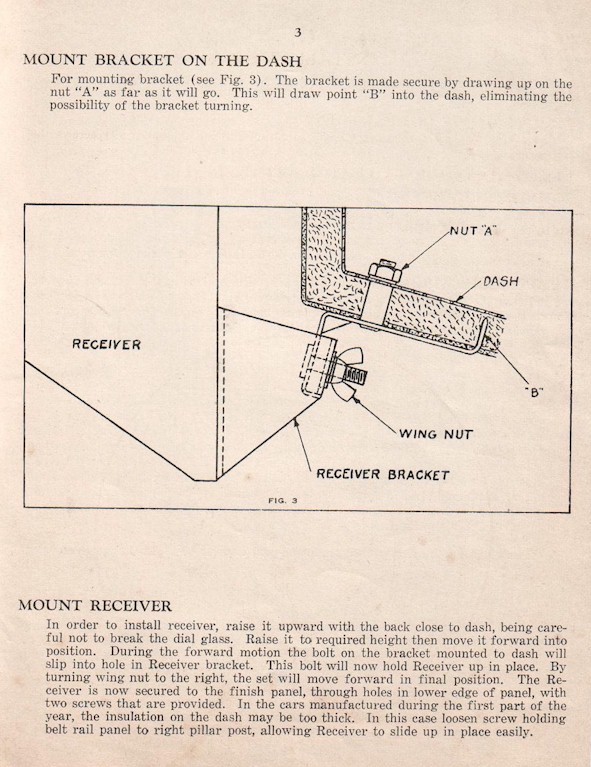

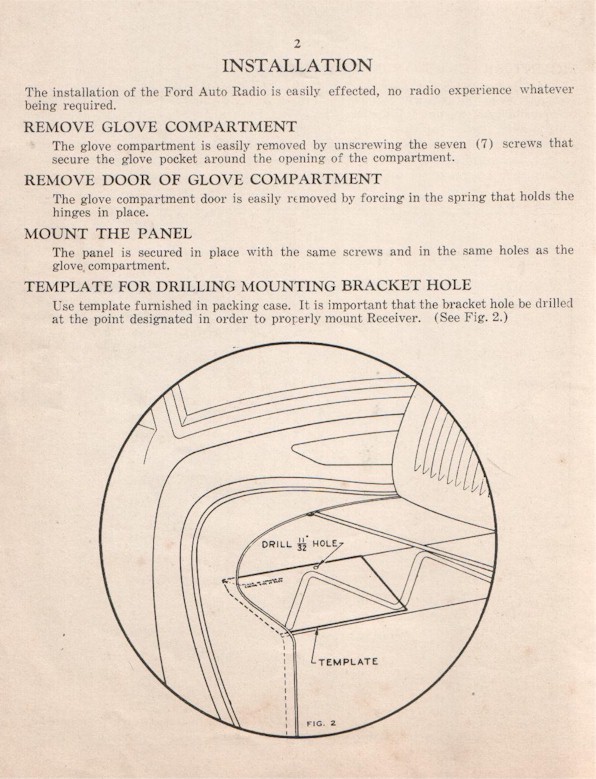

Manual of installation for the 1933-34 zenith glove box radio plus
the contents of the carton the radio came in, included the template
for drilling mounting bracket hole. Click on the pictures to se bigger
size. Only original stuff offcourse.

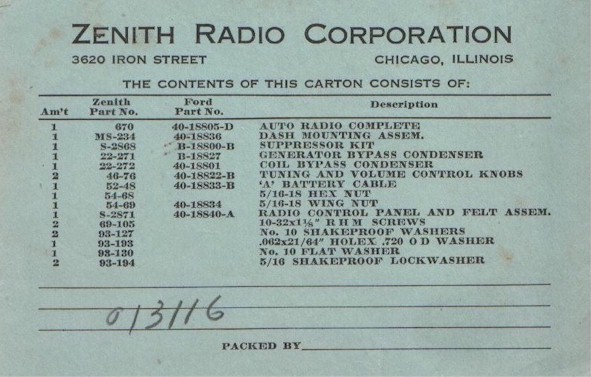

The blue "ticket" who shows the contents of the carton the radio came in.

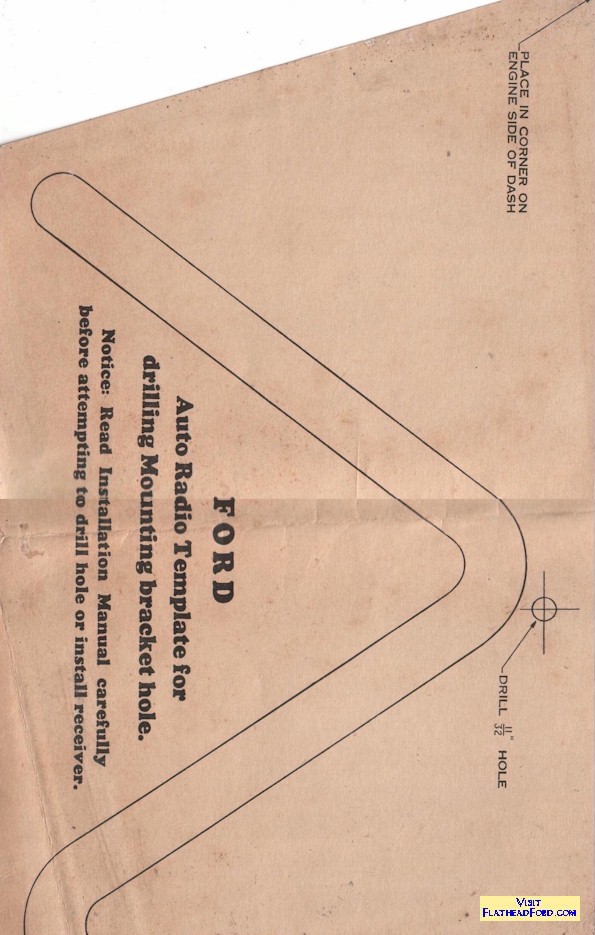

Below, the template for drilling mounting bracket hole, if you print it and
will use it for installation, you can se the actual size below.

                                   36 cm
                                  30 cm
